GB
~
Butt Splice Connectors
|
VINYL

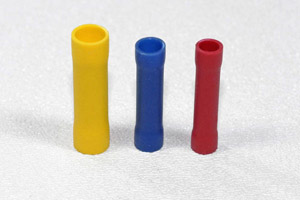

Our GB vinyl insulated
Butt Splice Connectors feature:
- 75 degrees C (167 degrees F) maximum temperature
- 300 maximum volt rating
- Brass
conductive plate
|
|
|
|
WIRE
RANGE
A.W.G. |
PART
NUMBER |
DIMENSIONS
(inches/mm) |
ELECTRICAL
CURRENT
|
INSULATION
MATERIAL |
| L |
D |
d1 |
| 22-16 |
GB-R6V |
0.953
24.2 |
0.157
4.0 |
0.067
1.7 |
10
amperes |
vinyl |
| 16-14 |
GB-B6V |
0.953
24.2 |
0.177
4.5 |
0.091
2.3 |
15
amperes |
vinyl |
| 12-10 |
GB-Y6V |
1.024
26.0 |
0.248
6.3 |
0.134
3.4 |
24
amperes |
vinyl |
|
NYLON
Our GB nylon insulated
Butt Splice Connectors feature:
- 105 degrees C (221 degrees F) maximum temperature
- 600 maximum volt rating
- Copper
conductive plate
|
|
|
|
WIRE
RANGE
A.W.G. |
PART
NUMBER |
DIMENSIONS
(inches/mm) |
ELECTRICAL
CURRENT
|
INSULATION
MATERIAL |
| L |
D |
d1 |
| 22-16 |
GB-R6N |
1.075
27.3 |
0.126
3.2 |
0.067
1.7 |
19
amperes |
nylon |
| 16-14 |
GB-B6N |
1.075
27.3 |
0.150
3.8 |
0.091
2.3 |
27
amperes |
nylon |
| 12-10 |
GB-Y6N |
1.075
27.3 |
0.209
5.3 |
0.134
3.4 |
48
amperes |
nylon |
|
|
