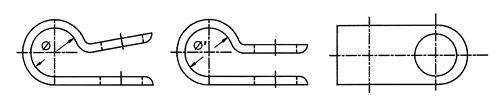

Cable Clamps

>Product Overview


  • Secure cables and wires to any hard surface with a screw
  • Manufactured with virgin-grade nylon 6/6
  • All sizes are available in natural (suffix -9) and UV resistant black (suffix -0)
  • Temperature Rating: -40°F to 185°F
  • Flammability Rating: UL 94 V-2


PART NUMBER

MAX BUNDLE DIAMETER
Inches (mm)

LENGTH
Inches (mm)

WIDTH
Inches (mm)

THICKNESS
Inches (mm)

SCREW SIZE

GCC-18

1/8” (3.2)

0.63” (16.0)

0.38” (9.6)

0.059”

(1.5)

#10

GCC-316

3/16” (4.8)

0.73” (18.5)

0.38” (9.6)

#10

GCC-14

1/4" (6.4)

0.77” (19.6)

0.39” (10.0)

#10

GCC-516

5/16” (8.0)

0.83” (21.1)

0.39” (10.0)

#10

GCC-38

3/8” (9.5)

0.88” (22.6)

0.47” (12.0)

#10

GCC-12

1/2" (12.7)

1.12” (28.5)

0.47” (12.0)

#10

GCC-5/8

5/8” (15.9)

1.35” (34.3)

0.47” (12.0)

#10

GCC-34

3/4" (19.1)

1.43” (36.3)

0.47” (12.0)

#10

GCC-1

1” (25.4)

1.69” (43.0)

0.47” (12.0)
#10

GCC-114

1 1/4” (31.8)

1.82” (46.2)

0.47” (12.0)

#10
