Cradle Mounts

>Product Overview



  • For securing bundles to flat surfaces via screw-down

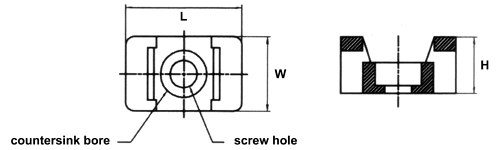

  • Screw hole is countersunk to allow screw head to recess inside cradle to prevent snagging during insertion
  • 2-way insertion
  • Available in natural (suffix -9) only


PART NUMBER

MOUNTING TYPE

DIMENSION
Inches (mm)

CABLE TIES ACCEPTED

GCM-S

#6 screw
(0.276” countersink bore)

0.587 x 0.374 x 0.283
(14.9 x 9.5 x 7.2)

up to 0.19" width (50 lb)

GCM-L

#10 screw
(0.378” countersink bore)

0.862 x 0.634 x 0.382
(21.9 x 16.1 x 9.7)

up to 0.35" width (175 lb)
