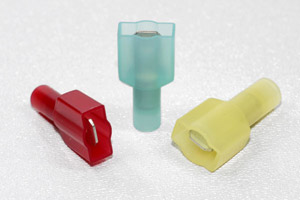

Fully Insulated Female Quick-slides (Nylon Insulated)

>Product Overview

Greenlite's GFQF series fully insulated female quick-slides provide superior performance at affordable prices. Full-length insulation sleeves offer the greatest production against shorts and shocks. Electro-tin-plated brass contacts ensures excellent conducitivty and resistance to corrosion. GFQF quick-slides also feature funnel entries for easier wire insertion.

UL Rated for 105oC (221oF), 300 volts

WIRE RANGE (A.W.G.)
PART NUMBER
TAB SIZE
MAX AMPS
22-16
GFQF-R25N
0.250"
10A
16-14
GFQF-B25N
0.250"
15A
12-10
GFQF-Y25N
0.250"
24A

Fully Insulated Male Quick-slides (Nylon Insulated)

>Product Overview

Our GFQM series full insulated male quick-slides mate tightly with our GFQF series female quick-slides. Precision engineering means that connections will never come apart unless you want them to come apart. Electro-tin-plated brass contacts ensures excellent conducitivty and resistance to corrosion. GFQF quick-slides also feature funnel entries for easier wire insertion.

UL Rated for 105oC (221oF), 300 volts

WIRE RANGE (A.W.G.)
PART NUMBER
TAB SIZE
MAX AMPS
22-16
GFQM-R25N
0.250"
10A
16-14
GFQM-B25N
0.250"
15A
12-10
GFQM-Y25N
0.250"
24A
