Ring Terminals (Vinyl Insulated)

>Product Overview

Greenlite's GR series vinyl insulated rings provide superior performance at affordable prices. Electro-tin-plated copper ensures maxmium conducitivty and resistance to corrosion.

UL Rated for 105oC (221oF), 600 volts (1000V fixture and signs)
WIRE RANGE (A.W.G.)
PART NUMBER
STUD SIZE
MAX AMPS
22-16
 GR-R6V
#6
19A
GR-R8V
#8
19A
GR-R10V
#10
19A
GR-R14V
1/4"
19A
16-14
 GR-B6V
#6
27A
GR-B8V
#8
27A
GR-B10V
#10
27A
GR-B14V
1/4"
27A
GR-B516V
5/16”
27A
GR-B38V
3/8”
27A
12-10
 GR-Y6V
#6
48A
GR-Y8V
#8
48A
GR-Y10V
#10
48A
GR-Y14V
1/4"
48A
GR-Y516V
5/16”
48A
GR-Y38V
3/8”
48A
GR-Y12V
1/2”
48A

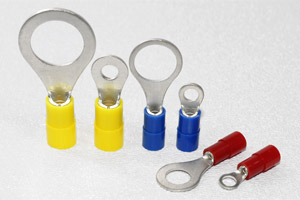

Ring Terminals (Nylon Insulated)

>Product Overview

Our single-crimp nylon insulated rings provide additional chemical resistance and feature a funnel entry for easier wire insertion. Electro-tin-plated copper ensures maxmium conducitivty and resistance to corrosion.

UL Rated for 105oC (221oF), 600 volts (1000V fixture and signs)

Note: Greenlite's single-crimp nylon insulation is solid in color (not translucent).


Supplemental Info:
WIRE RANGE (A.W.G.)
PART NUMBER
STUD SIZE
MAX AMPS
22-16
 GR-R6N
#6
19A
GR-R8N
#8
19A
GR-R10N
#10
19A
GR-R14N
1/4"
19A
16-14
 GR-B6N
#6
27A
GR-B8N
#8
27A
GR-B10N
#10
27A
GR-B14N
1/4"
27A
GR-B516N
5/16”
27A
GR-B38N
3/8”
27A
12-10
 GR-Y6N
#6
48A
GR-Y8N
#8
48A
GR-Y10N
#10
48A
GR-Y14N
1/4"
48A
GR-Y516N
5/16”
48A
GR-Y38N
3/8”
48A
GR-Y12N
1/2”
48A

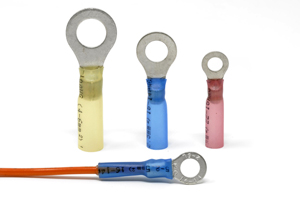

Ring Terminals (Heat-shrink Insulated)

>Product Overview

Our heat-shrink insulated rings are designed for the most secure electrical connectors.

The adhesive-lined, high-density PE insultation shrinks and bonds to the wire when heated, providing a tight, water-resistent seal.

UL Rated for 105oC (221oF), 600 volts


Supplemental Info:
WIRE RANGE (A.W.G.)
PART NUMBER
STUD SIZE
MAX AMPS
22-16
 GR-R6HS
#6
19A
GR-R8HS
#8
19A
GR-R10HS
#10
19A
GR-R14HS
1/4"
19A
16-14
 GR-B6HS
#6
27A
GR-B8HS
#8
27A
GR-B10HS
#10
27A
GR-B14HS
1/4"
27A
GR-B516HS
5/16”
27A
GR-B38HS
3/8”
27A
12-10
 GR-Y6HS
#6
48A
GR-Y8HS
#8
48A
GR-Y10HS
#10
48A
GR-Y14HS
1/4"
48A
GR-Y516HS
5/16”
48A
GR-Y38HS
3/8”
48A
GR-Y12HS
1/2”
48A
