GTB ~  Terminal Blocks







SPECIFICATIONS

PART

NUMBER

 A.W.G. AMP VOLT

SCREW

SIZE
GTB-8 20-18 20A 600V M2.6 x 5
GTB-10 22-10 30A 600V M3.0 x 6
GTB-12 22-10 35A 600V M3.5 X 7
GTB-14 20-8 50A 600V M4.0 x 9

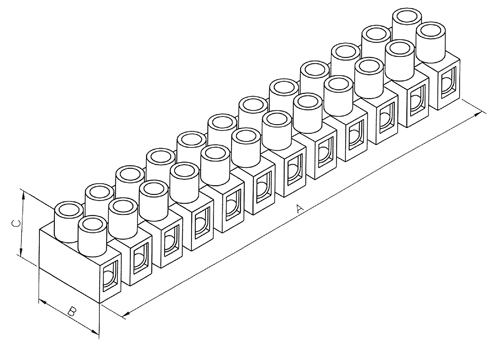

DIMENSIONS (inches/mm)

A B C D E F

3.74

96.2

0.67

17.0

0.57

14.5

0.32

8.0

0.11

2.9

0.11

2.9

4.63

117.0

0.80

20.2

0.67

17.0

0.39

10

0.14

3.6

0.13

3.2

5.54

140.7

0.94

23.8

0.75

19.0

0.48

12.2

0.15

3.8

0.15

3.9

6.22

158.0

1.01

25.6

1.0

25.2

0.53

13.5

0.17

4.3

0.19

4.8
