B Connectors

>Product Overview



Greenlite's B connectors are designed for telecom, alarm system, or any low voltage application, allowing users to securely connect wires without having to strip the wire insulation.

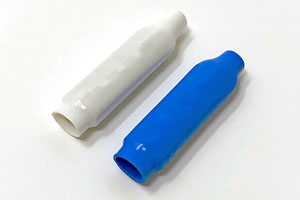

The B connectors are available in an unfilled version (BW2) suitable for indoor applications as well as a sealant-filled version (BB2) suitable for outdoor applications.



PART NUMBER

COLOR

WIDTH

LENGTH

WIRE RANGE

SEALANT FILLED?

CONDUCTOR MATERIAL

BW2

white

0.157" (4.0mm)

1.00" (25.4mm)

24-16 AWG

no

brass

BB2

blue

0.157" (4.0mm)

1.00" (25.4mm)

24-16 AWG

yes

brass




U Connectors

>Product Overview



Greenlite's U Connectors are insulation displacement connectors (IDC) designed for low voltage applications. Simply insert the wires into the ports and crimp down the top button to establish a secure connection without the need for wire stripping.

The U connectors are filled with sealant and are moisture resistant.



PART NUMBER

COLOR

MAXIMUM INSULATION THICKNESS

PIC UNFILLED Wire Range

PIC FILLED Wire Range

Paper or Pulp Wire Range

UB

blue

0.050” (1.27mm)

26-22 AWG
(Ports: 2)

26-24 AWG
(Ports: 2)

26-22 AWG
(Ports: 2)

UR

red
0.066” (1.67mm)

26-22 AWG
(Ports: 3)

26-22 AWG
(Ports: 3)

26-22 AWG
(Ports: 3)

UY

yellow
0.060” (1.52mm)

26-20 AWG
(Ports: 2)

26-20 AWG
(Ports: 2)

26-20 AWG
(Ports: 2)
