Double Loop Cable Ties

>Product Overview

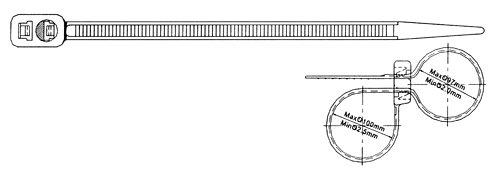

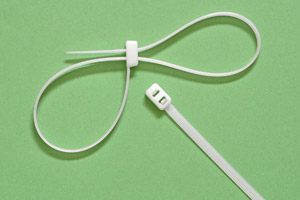

  • Dual locking heads enable fastening of two separate bundles with one cable tie
  • Manufactured with virgin-grade nylon 6/6
  • UL Recognized Component
  • Available in natural (suffix -9) only
  • Temperature Rating: -40°F to 185°F
  • Flammability Rating: UL 94 V-2


PART NUMBER

LENGTH
Inches (mm)

WIDTH
Inches (mm)

MAX BUNDLE DIAMETERS
Inches (mm)

MIN LOOP TENSILE STRENGTH

GDL-50S

7 7/8” (200)

0.19” (4.8)

1.85” (47) + 1.77” (45)

50 lbs (23 kg)

GDL-50M

11 4/5” (300)

0.19” (4.8)

2.83” (72) + 2.76” (70)

GDL-50L

14 1/2" (370)

0.19” (4.8)

3.94” (100) + 3.82” (97)
