3-SERIES Premium Push-in Wire Connectors


>Product Overview

  • The best push-in connectors on the market!
  • Accepts both solid and stranded wires, 22-12 AWG.
  • Reduce installation costs. No twisting; simply push stripped wires into each port for a reliable connection. Our 3-SERIES GPC push-in connectors offer the lowest insertion force yet strongest wire grip on the market.
  • Color-coded transparent polycarbonate housing (flame-retardant to UL92-V2 or UL92-V0) allows for quick and accurate visual inspection.
  • Ergonomically located test slot allows for easy testing with a voltage meter.
  • Excellent for OEM lighting manufacturing, lighting retrofitting, junction boxes, control panels, security & alarm systems, pre-fabricated wiring harnesses, etc.


PART NUMBER

POLES

COLOR

LENGTH A (in/mm)

WIDTH B (in/mm)

HEIGHT C (in/mm)

A.W.G.

VOLTAGE

MAX TEMP
( oC / oF )

GPC-352

2
yellow

0.748
19.0

0.42
10.8

0.411
10.5

22-12 CU

600V*

105 / 221

GPC-353

3
orange

0.748
19.0

0.59
15.1

0.411
10.5

22-12 CU

600V*

105 / 221

GPC-354

4
clear

0.748
19.0

0.77
19.5

0.411
10.5

22-12 CU

600V*

105 / 221

GPC-355

5
blue

0.748
19.0

0.93
23.7

0.411
10.5

22-12 CU

600V*

105 / 221

GPC-356

6
purple
0.748
19.0
1.10
28.0
0.411
10.5

22-12 CU

600V*

105 / 221

GPC-358

8
black
0.748
19.0
1.44
36.6
0.411
10.5

22-12 CU

600V*

105 / 221

*Rated 1,000V maximum in lighting fixtures and signs



3X-SERIES Compact Push-in Wire Connectors


>Product Overview

  • The most compact, highest value push-in connectors.
  • Accepts both solid (22-12 AWG) and stranded wires (18-12 AWG).
  • Improved ergomics: Better grip and bigger wire ports.
  • Reduce installation costs. No twisting; simply push stripped wires into each port for a reliable connection.
  • Color-coded transparent polycarbonate housing (flame-retardant to UL92-V2 or UL92-V0) allows for quick and accurate visual inspection.
  • Excellent for OEM lighting manufacturing, lighting retrofitting, junction boxes, control panels, security & alarm systems, pre-fabricated wiring harnesses, etc.


PART NUMBER

POLES

COLOR

LENGTH (in/mm)

WIDTH (in/mm)

HEIGHT (in/mm)

A.W.G.

VOLTAGE

MAX TEMP
( oC / oF )

GPC-352X

2
yellow

0.65
16.5

0.463
1.8

0.31
7.9

22-12 CU

600V*

105 / 221

GPC-353X

3
orange

0.65
16.5

0.626
15.9

0.31
7.9

22-12 CU

600V*

105 / 221

GPC-354X

4
clear

0.65
16.5

0.789
20.0

0.31
7.9

22-12 CU

600V*

105 / 221

GPC-355X

5
blue

0.65
16.5

0.953
24.2

0.31
7.9

22-12 CU

600V*

105 / 221

GPC-356X

6
purple
0.65
16.5
1.116
28.4
0.31
7.9

22-12 CU

600V*

105 / 221

GPC-358X

8
black
0.65
16.5
1.443
36.7
0.31
7.9

22-12 CU

600V*

105 / 221

*Rated 1,000V maximum in lighting fixtures and signs

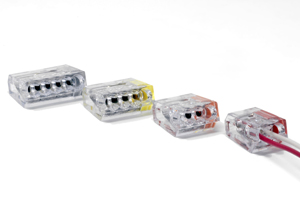

2X-SERIES Solid-Wire Push-in Wire Connectors


>Product Overview

  • For solid wires only
  • Reduce installation costs. No twisting; simply push stripped wires into each port for a reliable connection.
  • Color-coded transparent polycarbonate housing (flame-retardant to UL92-V2 or UL92-V0) allows for quick and accurate visual inspection.
  • Excellent for OEM lighting manufacturing, lighting retrofitting, junction boxes, control panels, security & alarm systems, pre-fabricated wiring harnesses, etc.


PART NUMBER

POLES

COLOR

A.W.G.

VOLTAGE

MAX TEMP
( oC / oF )

GPC-252X

2
red

22-12 CU

600V*

105 / 221

GPC-253X

3
orange

22-12 CU

600V*

105 / 221

GPC-254X

4
yellow

22-12 CU

600V*

105 / 221

GPC-255X

5
clear

22-12 CU

600V*

105 / 221

*Rated 1,000V maximum in lighting fixtures and signs
