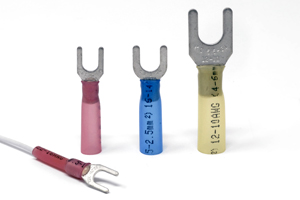

Spade/Fork Terminals (Vinyl Insulated)

>Product Overview

Greenlite's GS series vinyl insulated spades provide superior performance at affordable prices. Electro-tin-plated copper ensures maxmium conducitivty and resistance to corrosion.

UL Rated for 75oC (167oF), 600 volts

WIRE RANGE (A.W.G.)
PART NUMBER
STUD SIZE
MAX AMPS
22-16
GS-R6V
#6
19A
GS-R8V
#8
19A
GS-R10V
#10
19A
16-14
GS-B6V
#6
27A
GS-B8V
#8
27A
GS-B10V
#10
27A
12-10
GS-Y8V
#8
48A
GS-Y10V
#10
48A

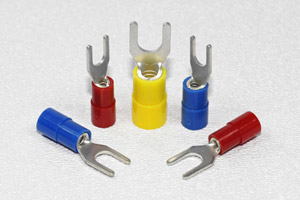

Spade/Fork (Nylon Insulated)

>Product Overview

Our nylon insulated spades are suitable for higher temperatures and feature a funnel entry for easier wire insertion. Electro-tin-plated copper ensures maxmium conducitivty and resistance to corrosion.

UL Rated for 105oC (221oF), 600 volts

Note: Greenlite's nylon insulation is solid in color (not translucent).

WIRE RANGE (A.W.G.)
PART NUMBER
STUD SIZE
MAX AMPS
22-16
GS-R6N
#6
19A
GS-R8N
#8
19A
GS-R10N
#10
19A
16-14
GS-B6N
#6
27A
GS-B8N
#8
27A
GS-B10N
#10
27A
12-10
GS-Y8N
#8
48A
GS-Y10N
#10
48A
